IceTech

BIN

Stock System



General Features

ICE TECH BINS storage systems for high demand of ice in a short time!

The optimal consolidated solution for the proper storage of ice.

Nice for all shapes of ice, easy and convenient ice extraction.

With all necessary hygienic and sanitary guarantees.

Available the ice storage & cat range, the last one use gravity for ice removal and asterde carts to easier delivery labor.

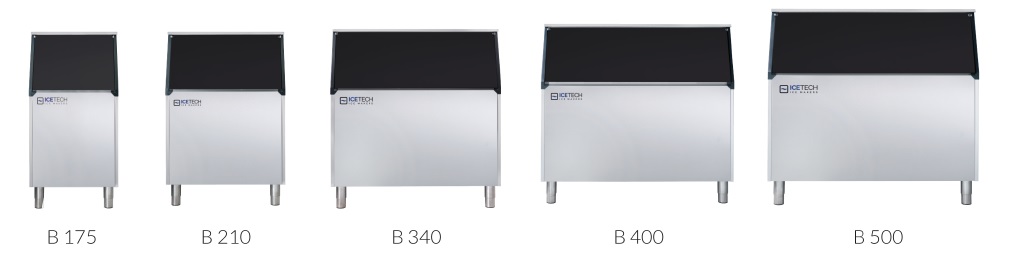

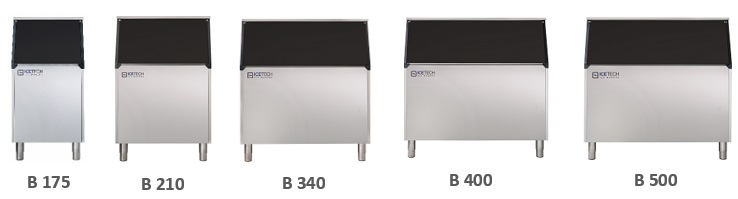

Range






Technical Features / Operating Limits

Ice All ice shapes
Body AISI 304 Stainless Steel
Certification ISO 9001, CE



Model Storage
Kg.

WIDTH x DEPTH x HEIGHT
Dimensions mm.
* Feet + 160mm
Volume
m3
Net weight
Kg.
ICE TECH B 210 225 762 x 819 x 1071* 0,93 56
ICE TECH B 340 350 1067 x 819 x 1071* 1,24 69
ICE TECH B 400 400 1219 x 819 x 1071* 1,30 75
ICE TECH B 500 480 1321 x 872 x 1122* 1,85 94

ICE TECH BC 240 250 788 x 1016 x 1524 1,20 200
ICE TECH BC 340 350 788 x 1016 x 1905 1,50 215
ICE TECH BCD 440 413 1524 x 1016 x 1520 - 140
ICE TECH BCD 600 617 1524 x 1016 x 1820 - 160
ICE TECH BCD 800 812 1524 x 1016 x 2084 - 175
ICE TECH C 100/TOTE 109/70 662 x 1054 x 722/887   35/8



FIND THE BIN THAT FITS YOUR ICE MACHINE


  SLOPE FRONT BIN
Model B 210 B 340 B 400 B 500
Machines 1 2 1 2 1 2  1  2
SS 150
SS 400
GR 220
GR 400
GR 560
GR 560 SPLIT
GR 850 CO2 SPLIT
FD/HD 215
FD/HD 415
SC 400
SC 600

                                                              Best choice                 Not best choice

BIN / CART COMBO

Model BC 240 BC 340 BCD 440 BCD 600 BCD 800
Machines 1 2 1 2 1 2 1 2 1 2
SS 150
GR 220
GR 400
GR 560
GR 560 SPLIT
GR 850 CO2 SPLIT
FD/HD 215
FD/HD 415
SC 400
SC 600
SC 1T
SC 1, 1.5, 2, 3T

                                                               Best choice                 Not best choice
